- Entry and exit spans must be parallel to each other and perpendicular to the plane of the guide's motion.
- Web must enter and exit the guide at a 90° angle. Guide span must be approximately 1\2 - 1x’s the maximum web width.
- The air-flow (edge) sensor must be securely mounted after the guide’s exit roller and within the first one-third of the exit span.
- At least one idler roller must be located between the exiting guide roller and the process (printing, laminating, etc.).
ST Displacement Guide Stack
Web widths up to 130 inches (3,302 mm)
Each of our Displacement Guide Stack is pre-engineered with multiple web guiding units on one common stand. These systems comes completely assembled on a rugged vertical stand ready for production.
Applications include (but not limited to):
multi-wall bags • envelope • label • medical and food packaging • slitting • laminating • inspection machines • other web applications where the alignment of the web is crucial
No Electricity! No Electronics! No Hydraulics! The ST Displacement Guide Stacks are easy to install and setup.
Request a Quote- Specifications
- Requirements
- Environment Applications
- Web Path Configurations
- Additional Equipment
- Application Gallery
| Roll Face | up to 140 in (3556mm) |
| Guide Span | up to 75 in (1905mm) |
| Roller Diameter | up to 8 in (203.2mm) |
Roller Types:
| Standard (One or Two Rollers) | Aluminum |
| Optional | Grooved, Stainless, Plasma, Cork Tape or Rubber Coated |
| Auto Center Option | Yes |
| Sensor Bracket Style | 104 |
| Maximum Tension | 20 PLI |
| Temperature | 32 - 170° F (0 - 76.7° C) |
| High Heat Option | up to 212° F (100° C) |
| Air Consumption (at 6 psi) | 1.8 CFM (51 l/m) |
- Wash Down
- Dusty Dirty
- High Heat
- Clean Room
- High Humidity
- Explosion-Proof
Web Path Configurations
How to Specify
- Center Guide
- Splice Table
- Stainless Steel
- Remote Sensor Controls
Application Gallery

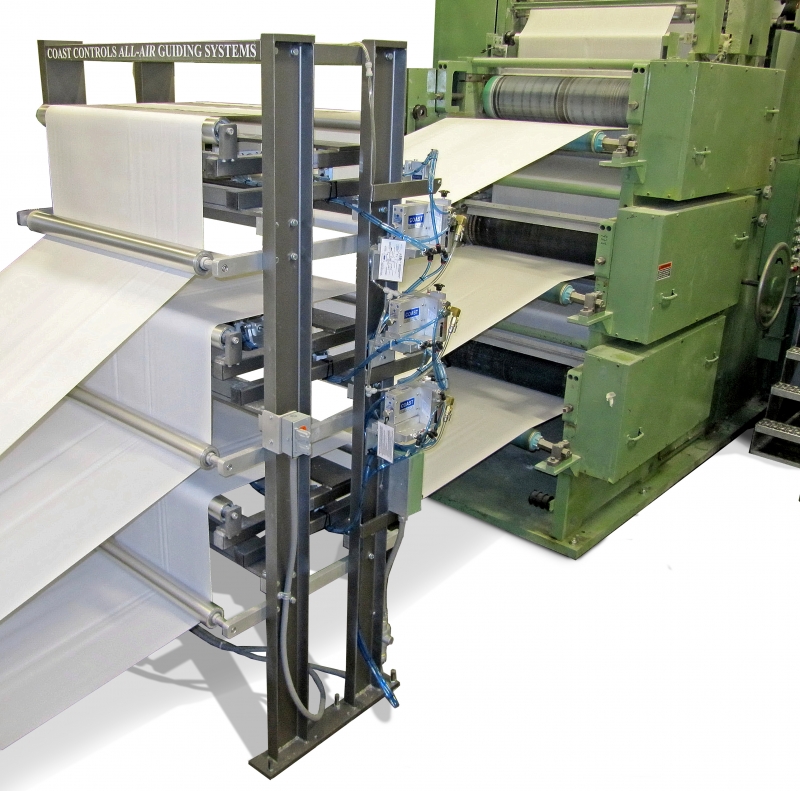

CD2 3-Up Stack System
