SRS1 Rewind

Max load 200 pounds (90.7 kg)

Web widths up to 20 inches (508 mm)

This compact rewind system with 1.0-inch race rods on a single raceway assembly, accurately guides various narrow webs up to 20-inch wide. Supporting a weight up to 200 lbs. (90.7 kg), this cantilevered Shifting Roll Stand (SRS1) allows the operator total control of the web’s tension and alignment into the converting/printing process.

Power is provided by a 6-inch diameter air cylinder with a 4-inch, 5-inch, or 6-inch stroke.

Each system features Montalvo tension control components and a continuous leaf core shaft.

A shifting idler roller is standard with all Unwind Stands to maintain a proper web plane through the sensor.

These compact unwind systems are perfect for:
pharmaceutical  •  medical  •  food packaging  •  label  •  other web applications where the alignment of the web is crucial

Request a Quote Product Sheet (PDF)
Specifications
Requirements
Environment Applications
Web Path Configurations
Additional Equipment
Max Web Width (3 in. core) 20 in (508 mm)
Max Load 200 lbs (90.7 kgs)
Stroke Length(s) 4 in (102mm) to 6 in (152mm)
Auto Center Option Yes
Sensor Bracket Style 104
Air Consumption (at 6 psi) 1.8 CFM (51 l/m)
Tension Controls Open or Closed Loop
  • At least one fixed idler roller is attached to – and moves in unison with the unwind stand to keep the material on a constant plane through the air-flow sensor as the diameter of the unwinding roll decreases.
  • The air-flow sensor mounts to a stationary part of the machine-independent of the shifting stand and does not move during guiding.
  • Wash Down
  • Dusty, Dirty
  • High Heat
  • Clean Room
  • High Humidity
  • Explosion-Proof

Web Path Configurations

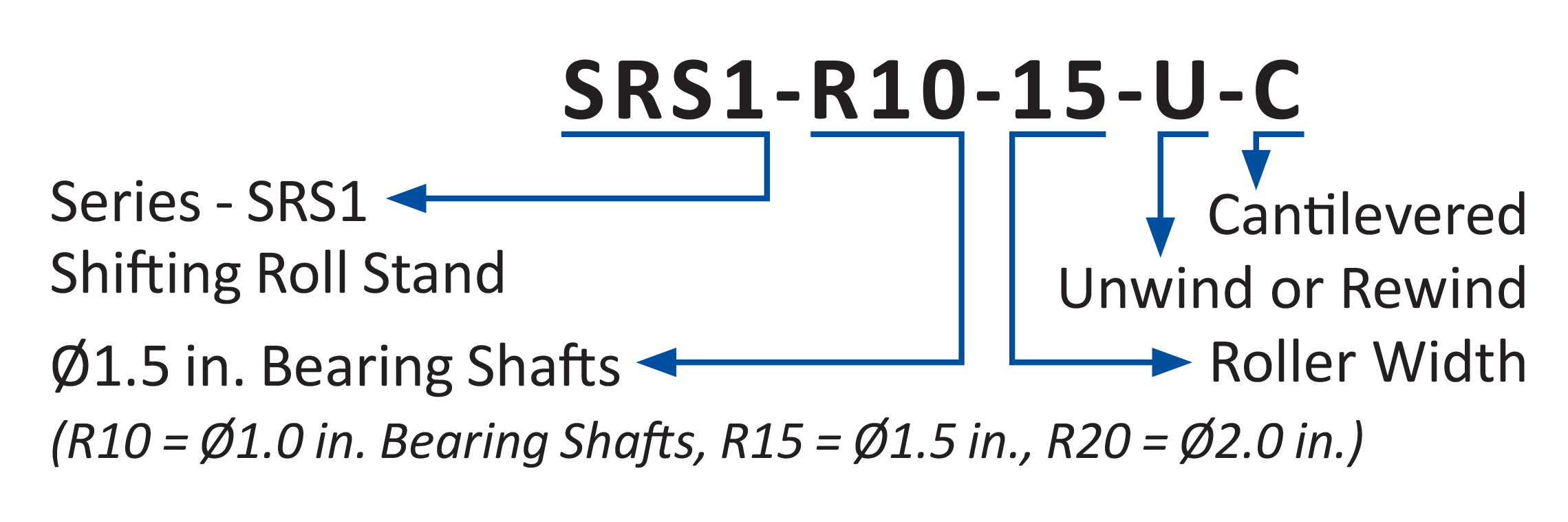

How to Specify

  • Center Guide
  • Stainless Steel Components
  • Remote Sensor Controls
