RS2-10

Web widths up to 130 inches (3302 mm)

The RS2-10 Steering Guide is ideal for the plastic film, multi-wall bag, coating, laminating and flexographic printing industry. Its features a double raceway assembly with 1-inch racerods and is usually powered by a 5 or 6-inch diameter air cylinder. The guide rollers move laterally on the linear raceway assembly and simultaneously pivot in the same direction to correct the misalignment. No electonics, no hydrolics means no problems. The RS2-10 series is easy to install and setup.

Request a Quote Product Sheet (PDF)
Specifications
Requirements
Environment Applications
Web Path Configurations
Additional Equipment
Downloads
Application Gallery
Roll Face 40 (1016) to 140 in (3556)
Roller Dia. 3 in (76.2) to 8 in (203.2)

Roller Types:

Standard (One or Two Rollers) Aluminum
Optional Grooved, Stainless, Plasma,
Cork Tape or Rubber Coated
Piston Thrust (At 6 psi) *392.7 lbs
Auto Center Option Yes
Sensor Bracket Style 104
Maximum Tension 20 PLI
Temperature 32 - 350° F (0 - 66° C)
Air Consumption (At 5 psi) 1.5 CFM (42 l/m)
  • The steering guide must be installed after a long, free-entering web span to prevent wrinkling. A web entry span of at least 2x the maximum web width must be maintained.
  • The pre-entry span must be shorter than the entry span.
  • The preferred exit span should be at least 1/2 to 1x the maximum web width.
  • The air-flow sensor must be securely mounted after the guide's exit roller (within the first 1/3 of the exit span).
  • At least one idler roller must be located between the exit roller and the process (i.e. printing) to avoid guiding directly into a process.



  • Wash down
  • Dusty Dirty
  • High Heat
  • Clean Room
  • High Humidity
  • Explosion Proof

Web Path Configurations



Guides can be placed in any orientation and sensor can be on either the near side or far side of the web. Dual sensor to center-guide is optional.

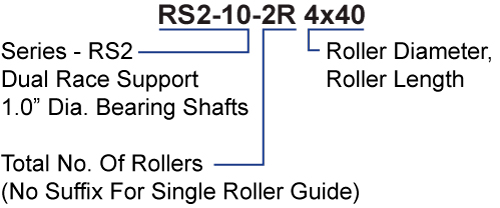

How to Specify

  • Center Guide
  • Splice Table
  • Stainless Steel
  • Multiple Stack Units
  • Remote Sensor Controls

Application Gallery

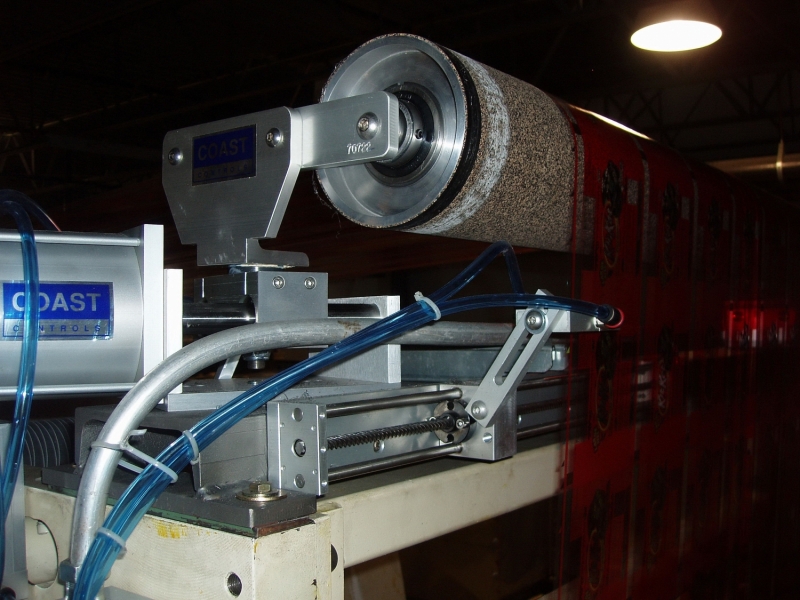

RS2-10 with Remote Sensor Control

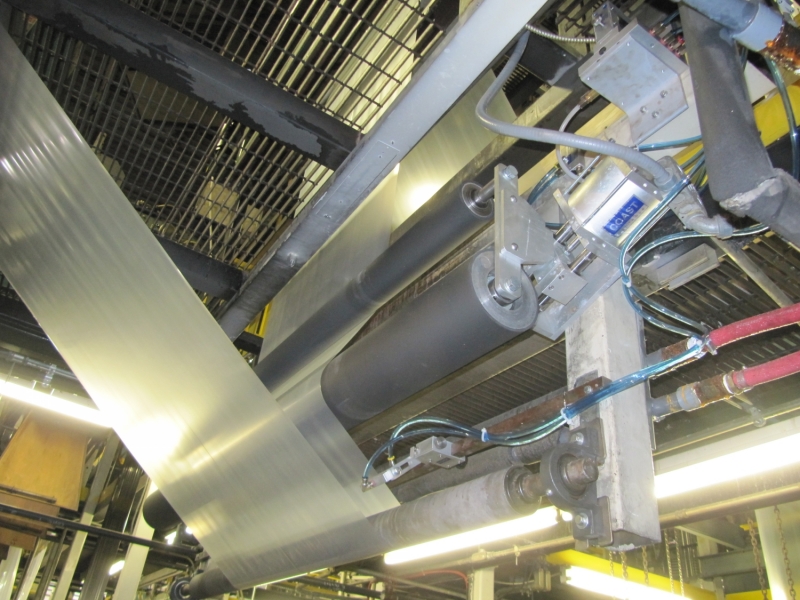

RS2-10 Blown Film Extruder
