| Roll Face |
5 in (127mm) to 6 in (152.4mm) |
| Guide Span |
5 in (127mm) to 6 in (152.4mm) |
| Roller Dia. |
1.5 in (38.1mm) to 2 in (50.8mm) |
Roller Types:
| Standard |
Aluminum |
| Optional |
Grooved, Stainless, Plasma, Cork Tape or Rubber Coated |
| Auto Center Option |
Yes |
| Sensor Bracket Style |
201 or 104 |
| Maximum Tension |
20 PLI |
| Temperature |
32 - 350° F (0 - 66° C) |
| High Heat Option |
up to 212° F (100° C) |
| Air Consumption (at 6 psi) |
1.8 CFM (51 l/m) |
*On linear bearings with 0.1 coefficient of friction.
- Entry and exit spans must be parallel to each other and perpendicular to the plane of the guide's motion.
- Web must enter and exit the guide at a 90° angle. Guide span must be approximately 1/2 - 1x’s the maximum web width.
- The air-flow (edge) sensor must be securely mounted after the guide’s exit roller and within the first one-third of the exit span.
- At least one idler roller must be located between the exiting guide roller and the process (printing, laminating, etc.).
- Wash Down
- Dusty, Dirty
- High Heat
- Clean Room
- High Humidity
- Explosion-Proof
Web Path Configurations

Guides can be placed in any orientation and the sensor can be on either the near side or far side of the web. Dual sensor to center-guide is optional.

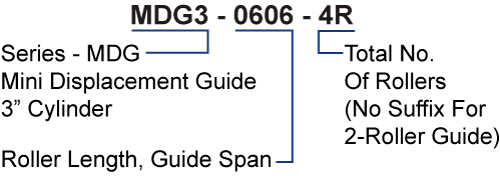

How to Specify

- Center Guide
- Splice Table
- Stainless Steel
- Remote Sensor Controls
