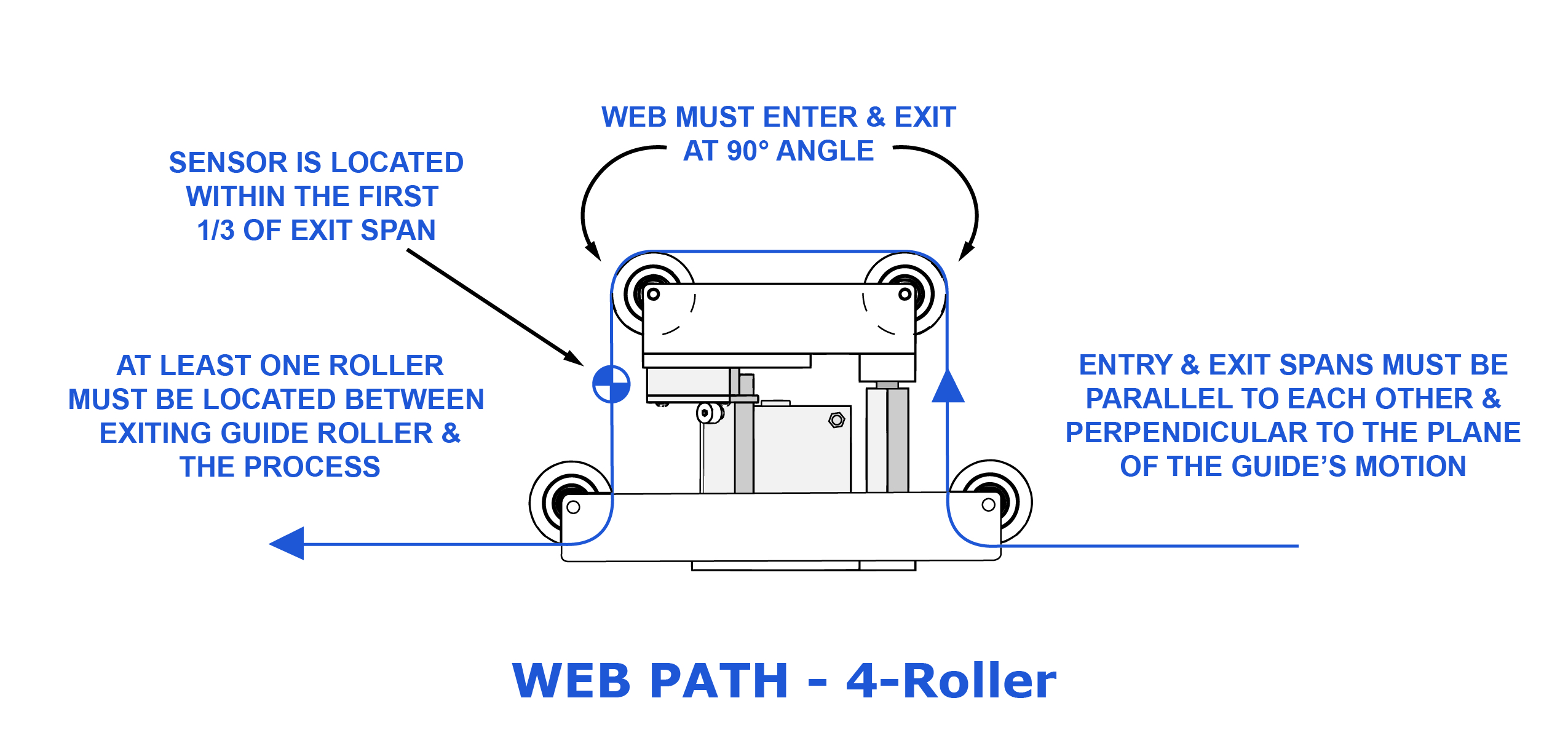

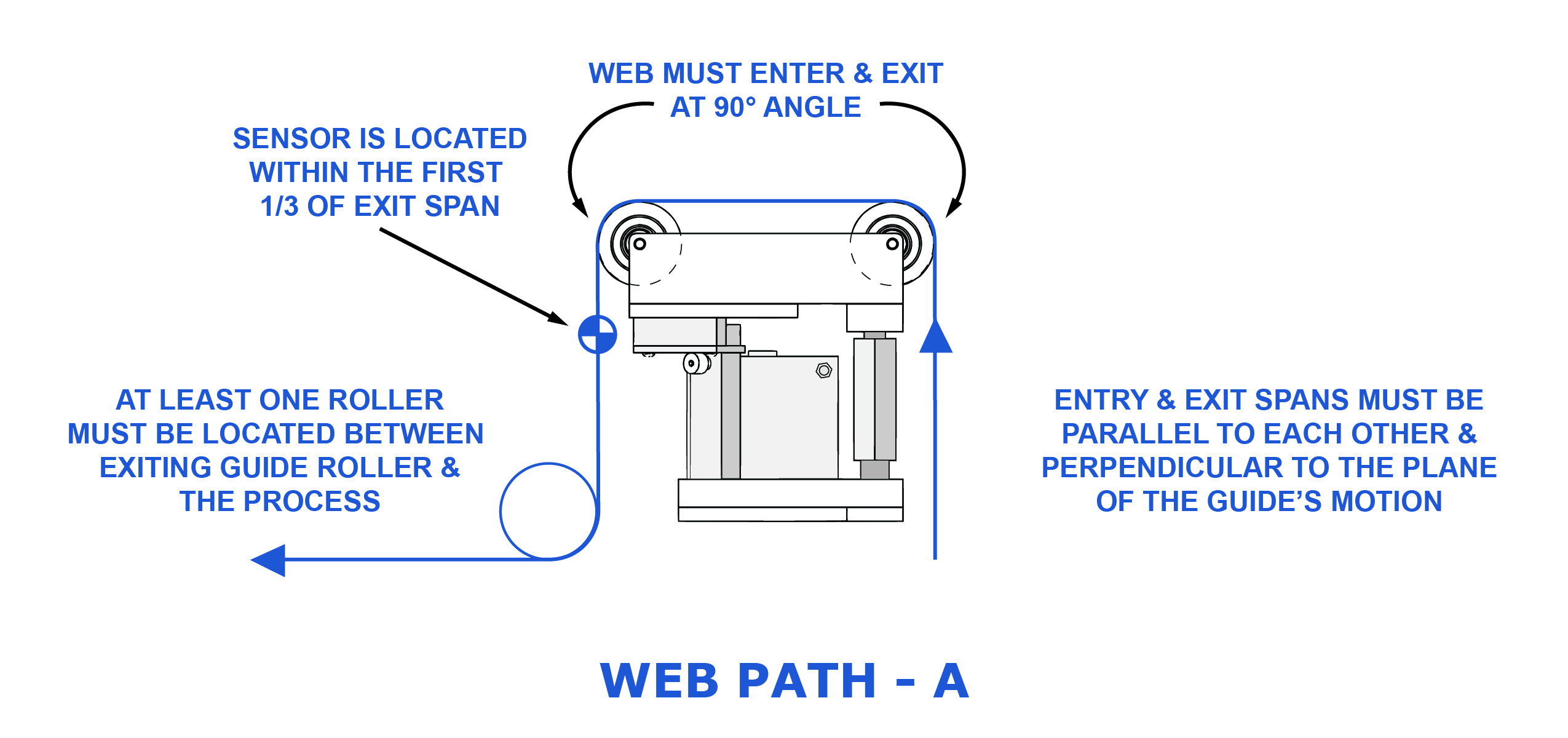

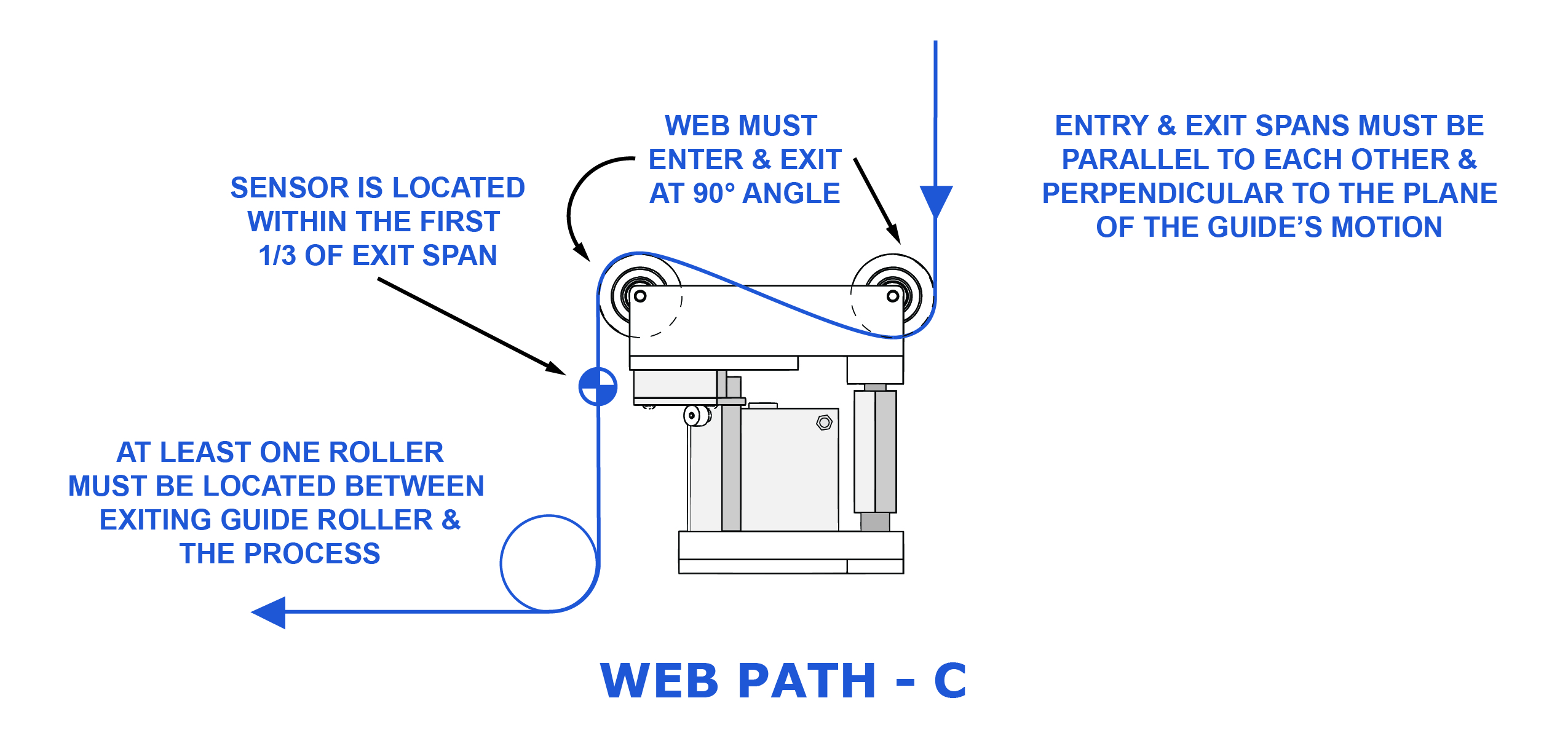

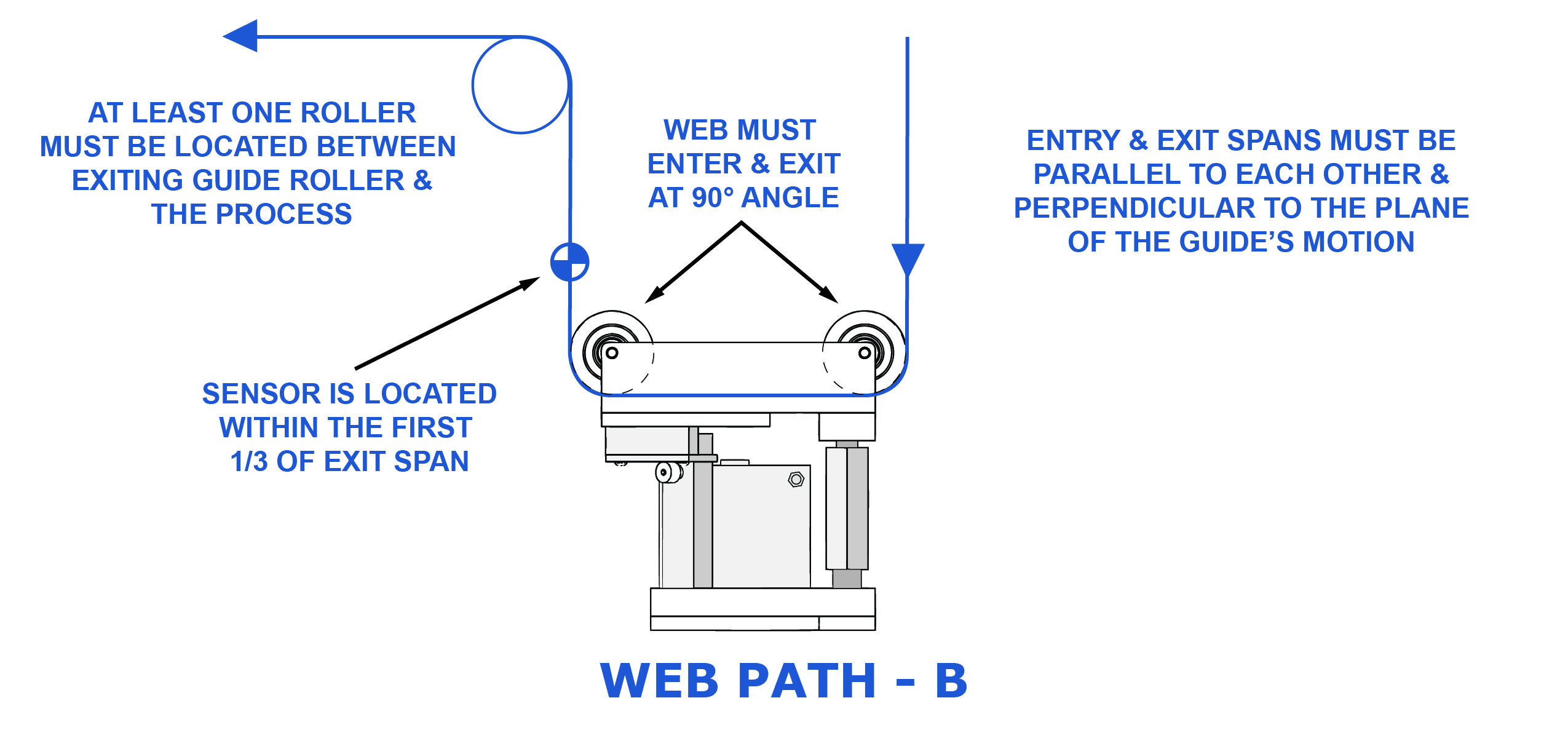

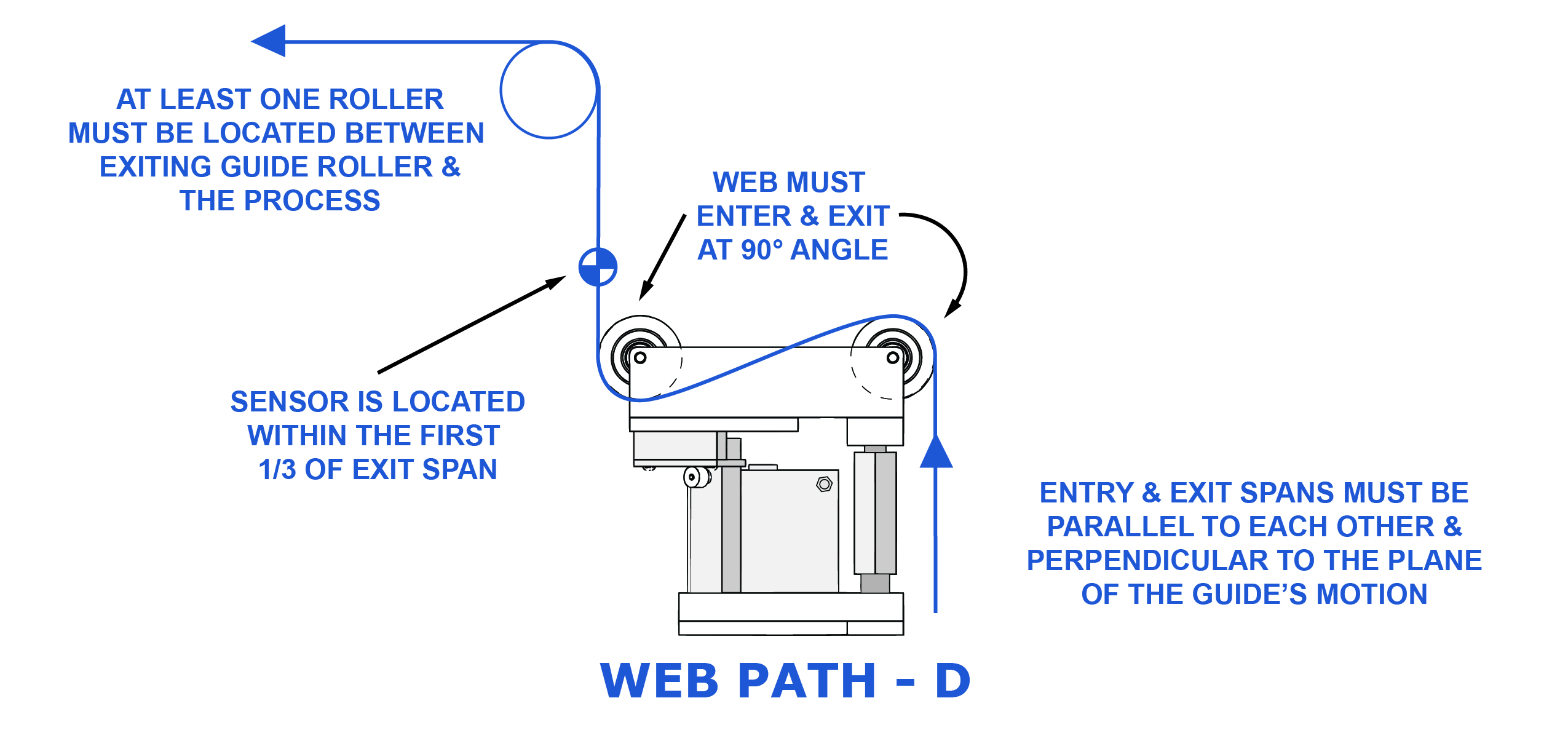

Typical Displacement Guide Installation and Threading Options
*Note: The air-flow sensor should be located as close to the exiting guide roller as possible and within the first 1/3 of the exiting span.
*Note: The air-flow sensor should be located as close to the exiting guide roller as possible and within the first 1/3 of the exiting span.
