RDG5

Web widths up to 26 inches (660.4 mm)

Rigid Displacement Guides (RDG5) feature a 5 inch (127) actuator and either a two or more roller configuration and are designed for "mid-size" web applications up to 26 inches (660.4) which are ideal for compact spaces. Each RDG5 system is engineered with a 2-point suspension system which offers the ultimate in support and heavy-duty thick anodized aluminum construction offers the best mid-sized guide rigidity that is built to withstand the most rigorous environments. Applications include (but not limited to) business forms, food packaging, medical & pharmaceutical packaging, plastic film, slitting & rewinding, coating, laminating, inspection machines and other "mid-size" web applications where alignment of the web is crucial. No Electricity! No Electronics! No Hydraulics! The RDG5 Series web guides are easy to install and setup.

Request a Quote Product Sheet (PDF)
Specifications
Requirements
Environment Applications
Web Path Configurations
Additional Equipment
Downloads
Application Gallery
Roll Face 20 in (508) to 30 in (762)
Guide Span 16 in (406.4) to 25 in (635)
Roller Dia. 3 in (76.2) to 4 in (101.6)

Roller Types:

Standard Aluminum
Optional Grooved, Stainless, Plasma
Piston Thrust (At 6 psi) 1178 lbs
Auto Center Option Yes
Sensor Bracket Style 34 or 104
Maximum Tension 20 PLI
Temperature 32 - 350° F (0 - 66° C)
Air Consumption (At 6 psi) 1.8 CFM (51 l/m)
  • Entry and exit spans must be parallel to each other and perpendicular to the plane of the guide's motion.
  • Web must enter and exit the guide at a 90° angle. Guide span must be approximately 1\2 - 1x’s the maximum web width.
  • The air-flow (edge) sensor must be securely mounted after the guide’s exit roller and within the first one-third of the exit span.
  • At least one idler roller must be located between the exiting guide roller and the process (printing, laminating, etc.).

  • Wash down
  • Dusty Dirty
  • High Heat
  • Clean Room
  • High Humidity
  • Explosion Proof

Web Path Configurations



Guides can be placed in any orientation and sensor can be on either the near side or far side of the web. Dual sensor to center-guide is optional.

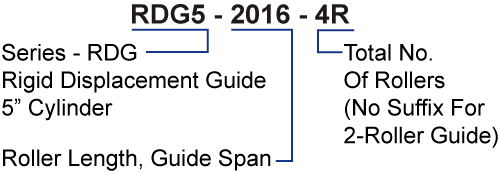

How to Specify

  • Center Guide
  • Splice Table
  • Stainless Steel
  • Multiple Stack Units
  • Remote Sensor Controls

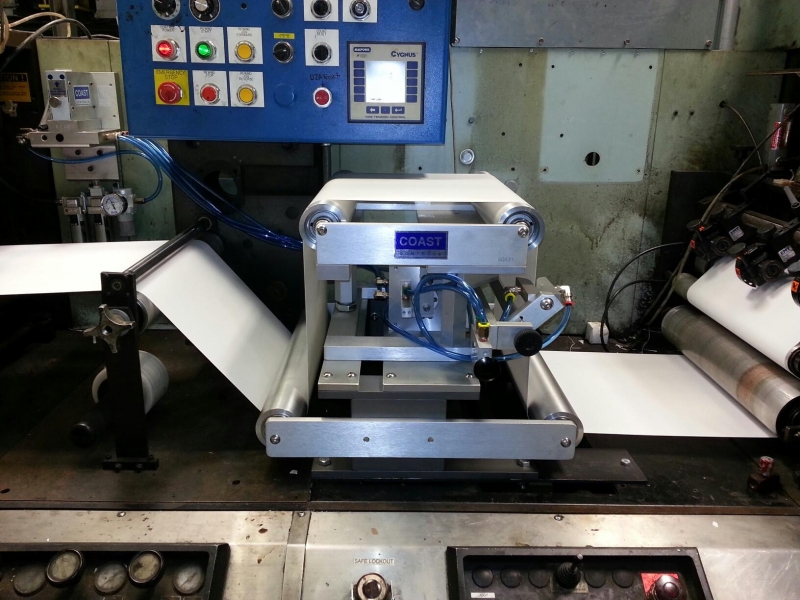

Application Gallery

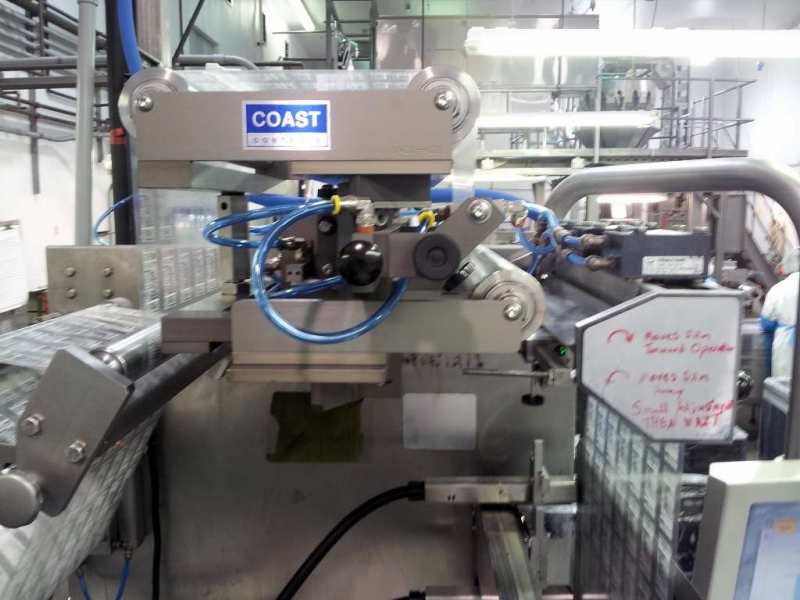

RDG5 on Multvac R530 Form Fill and Seal

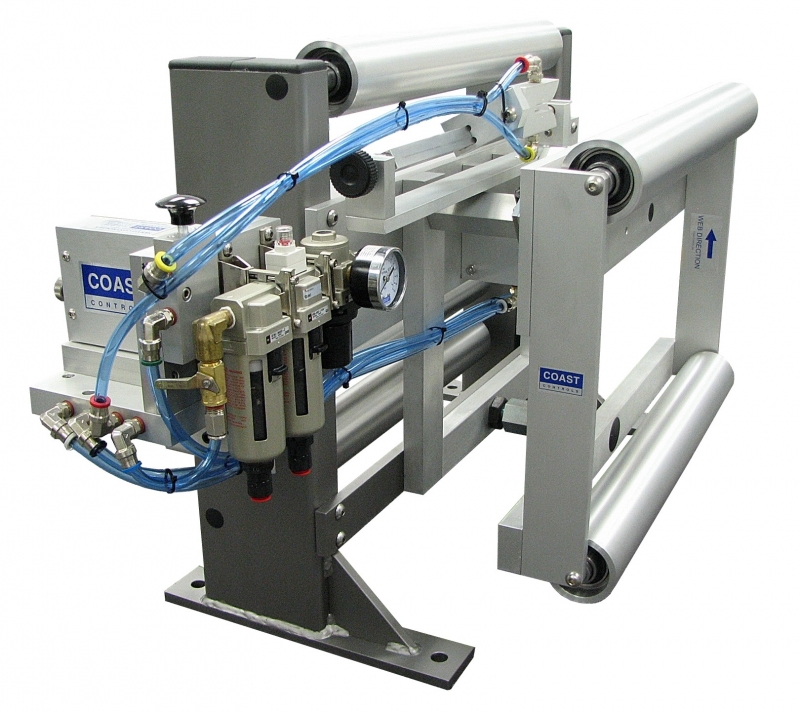

RDG5 with stand

RDG5 on Printing Machine prior to Slitting
